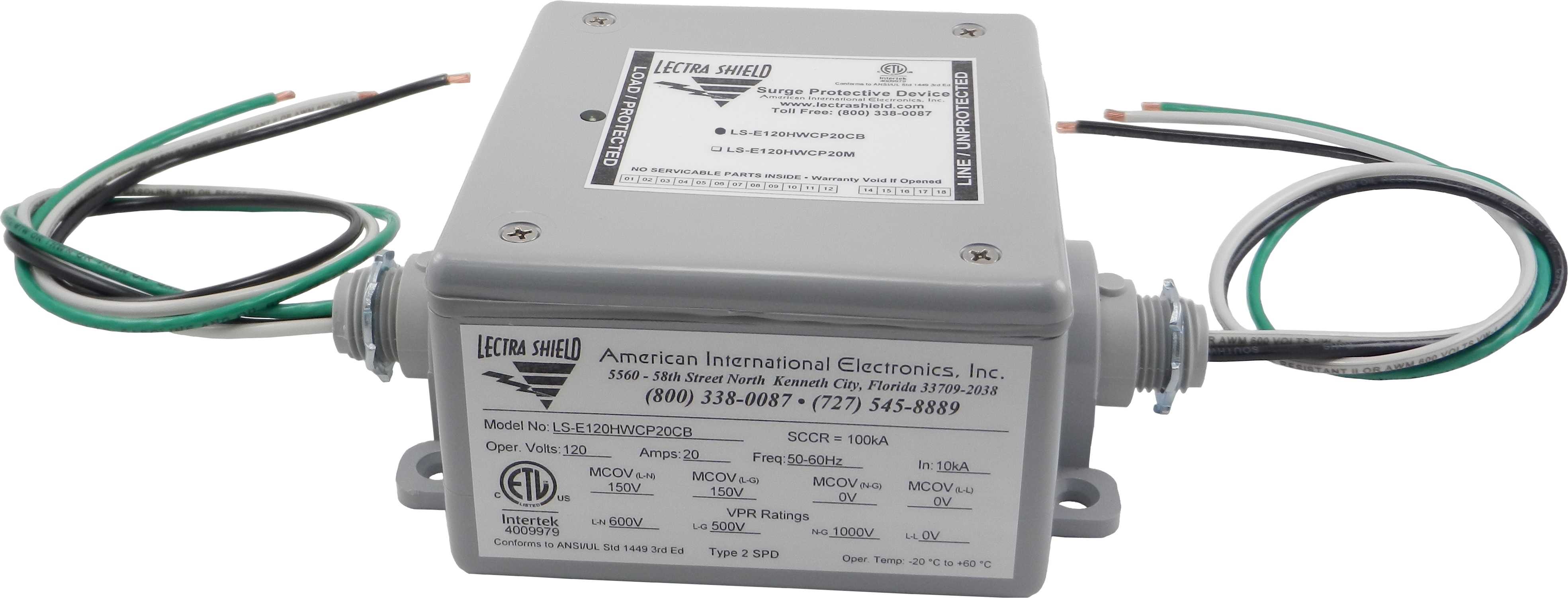

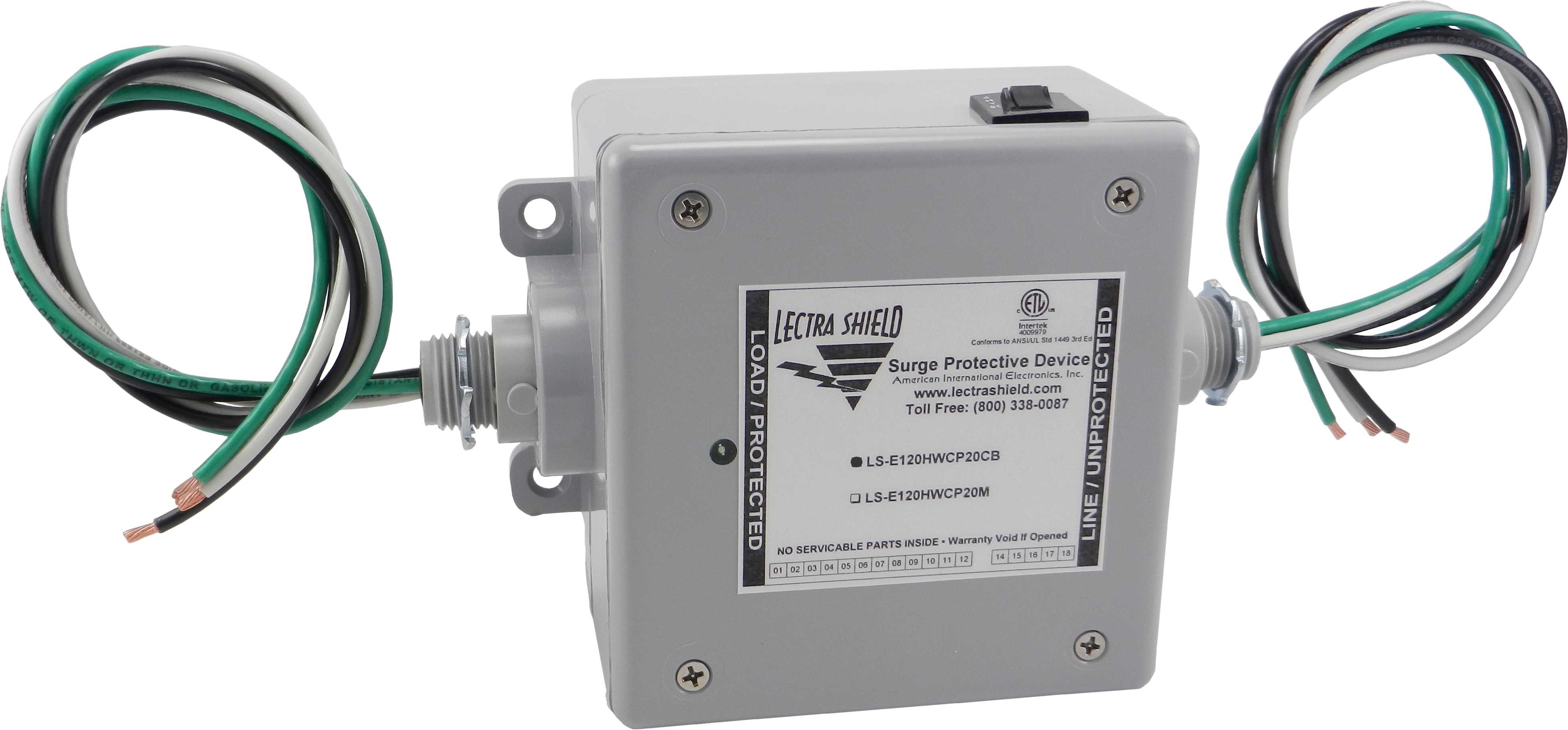

LS-E120HWCP20CB





• Hardwire Branch Circuit Protector

• Type 2 Surge Protective Device

• 120 Volts AC

• 20 Amp Circuit Breaker
• In-Line Series

• High Bright LED Status Indicator

• Conforms to ANSI/UL Standard 1449 4th Edition

Home                 AC In-Line Series            AC Parallel 100kA           AC Parallel 50kA                Low Voltage

                           Access Control                Fire / Burglar                   Tele / CCTV / Comp           Residential

Contact Us

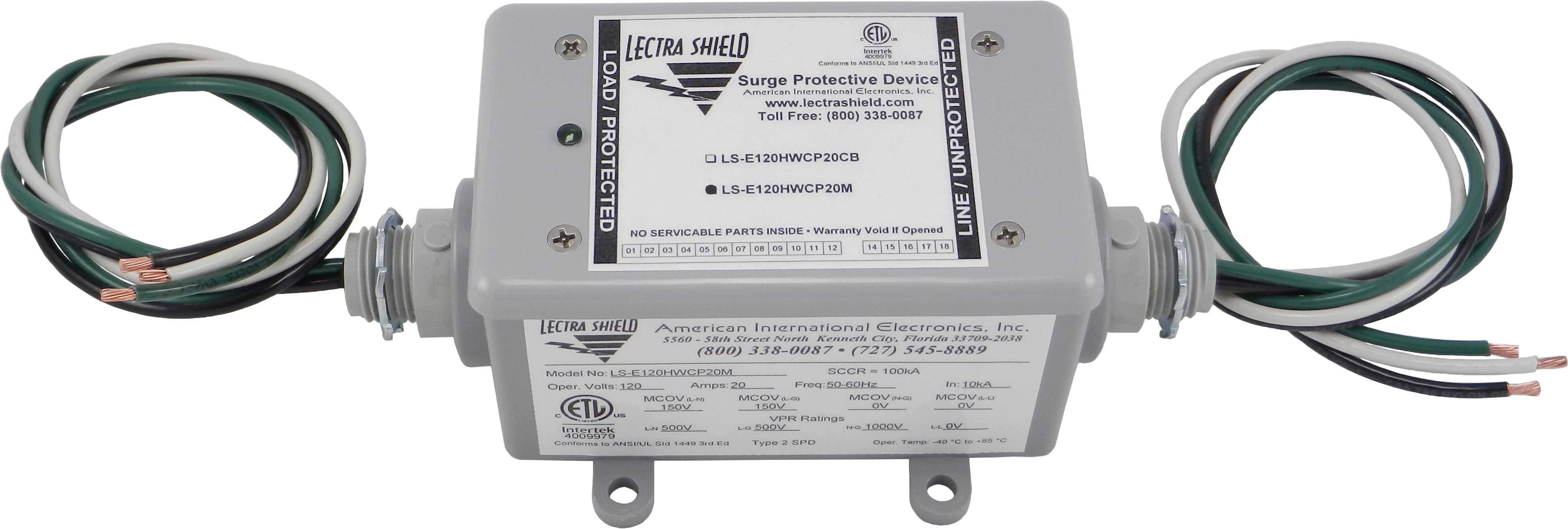

LS-E120HWCP20M





• Hardwire Branch Circuit Protector

• Type 2 Surge Protective Device

• 120 Volts AC

• 20 Amps
• In-Line Series

• High Bright LED Status Indicator

• Conforms to ANSI/UL Standard 1449 4th Edition

AC In-Line Series SPD

Data Sheet

Enlarge Image 1

Enlarge Image 2

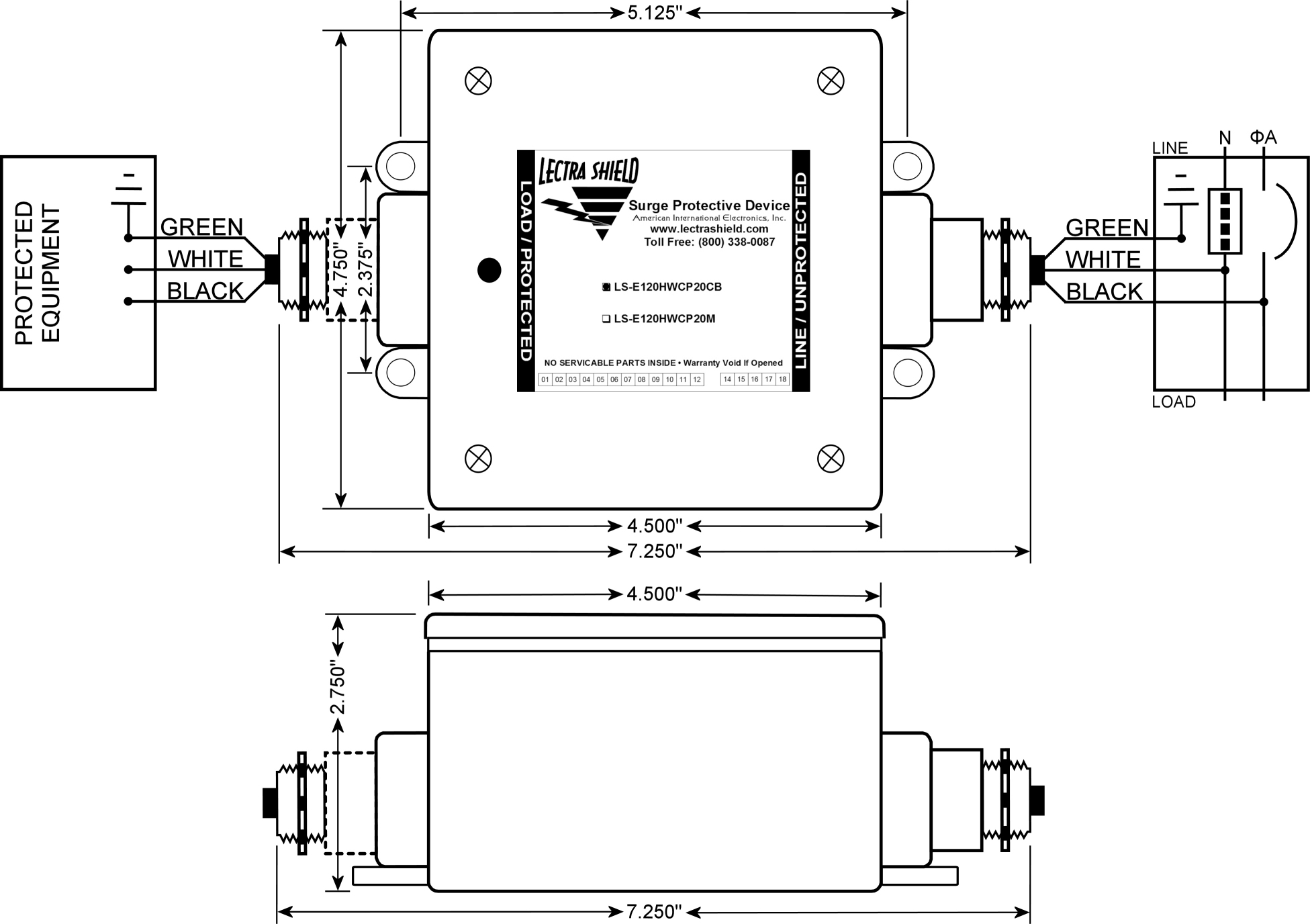

Enlarge Drawing

Data Sheet

Enlarge Image

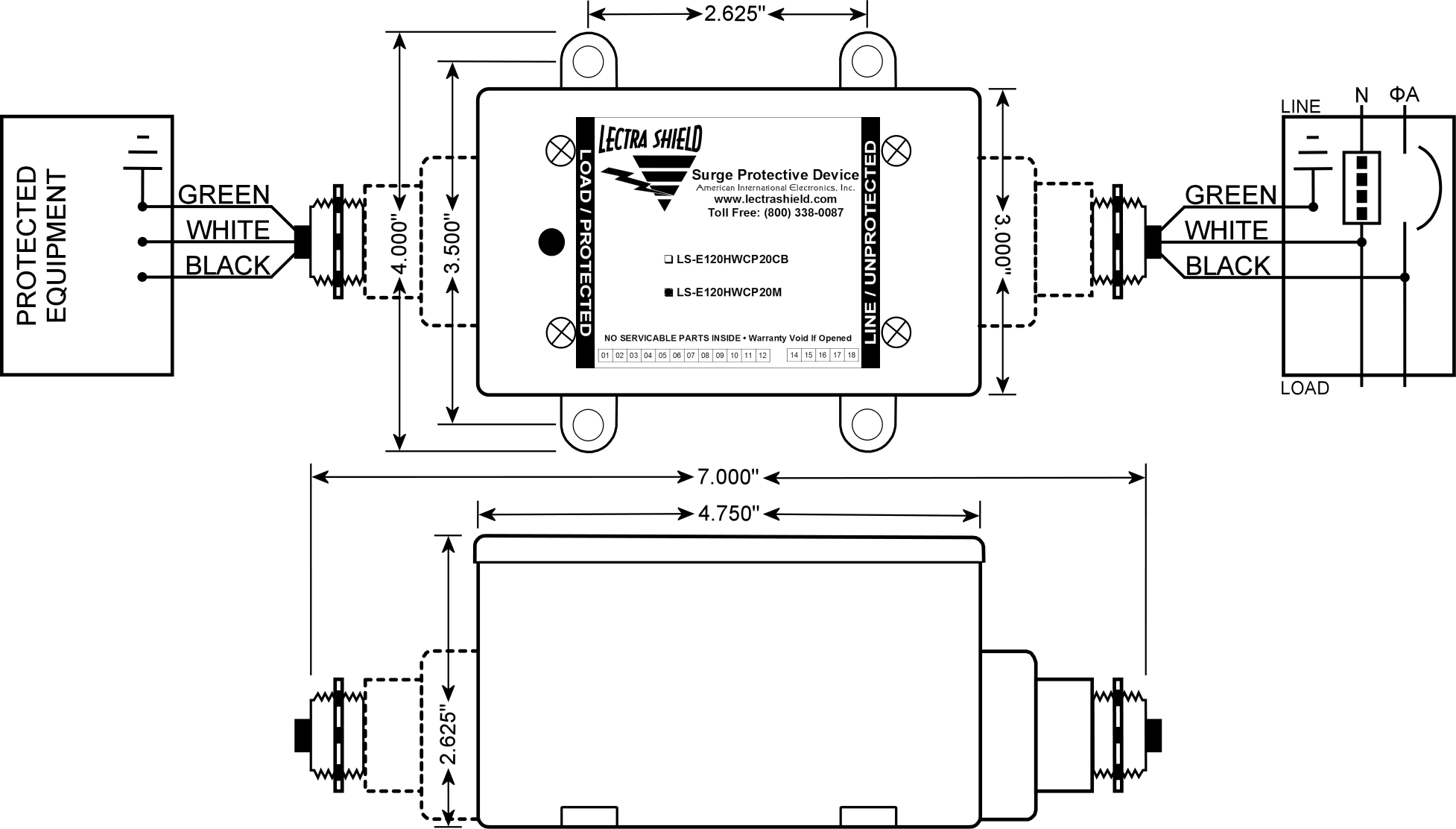

Enlarge Drawing

These devices will not pass power if incorrectly installed, reverse polarity is present, or the surge protection has exhausted.
